Оборудование
Мы предоставляем все необходимое оборудование для внедрения облачной системы видеонаблюдения: IP-камеры, облачные регистраторы и агенты для подключения существующих камер

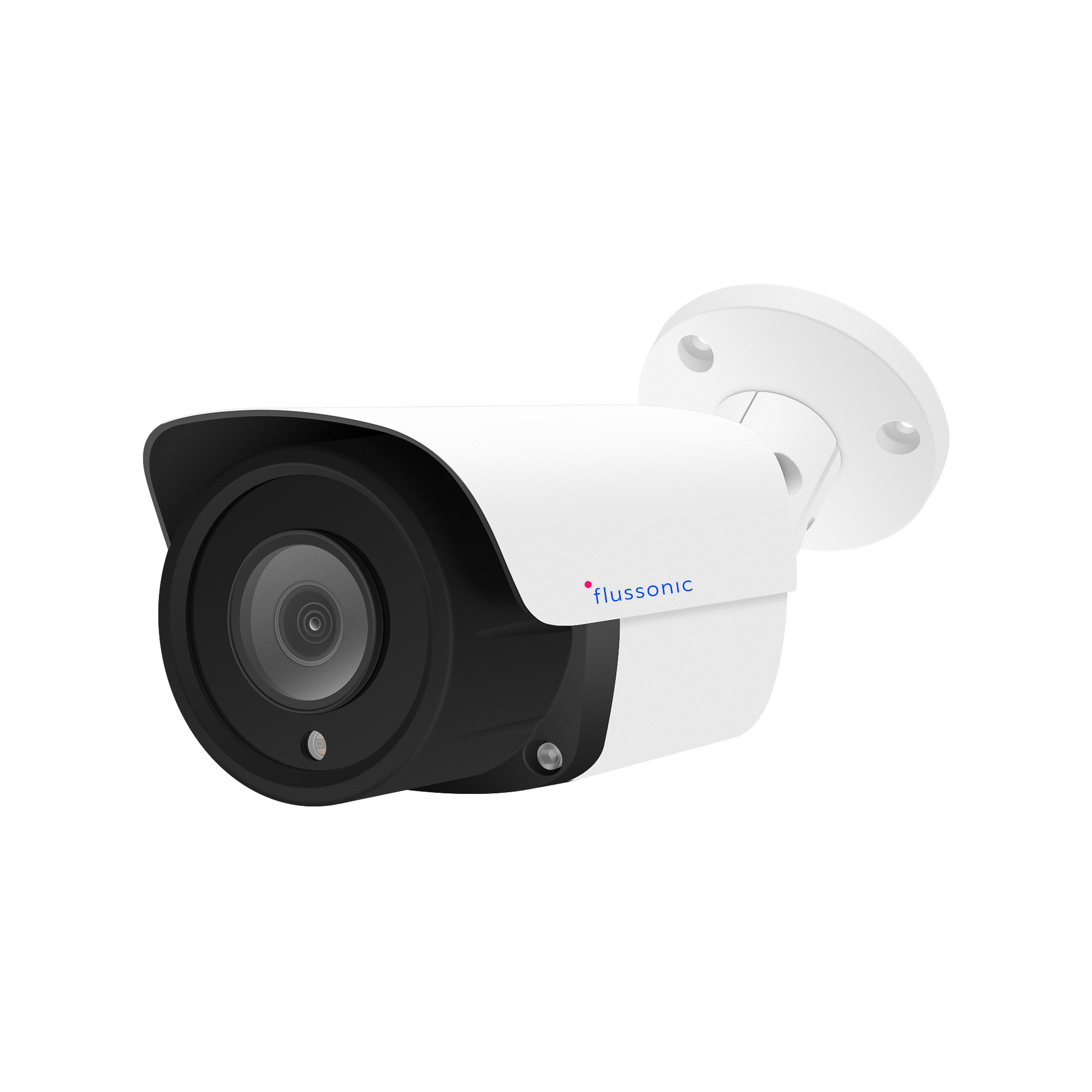

BULLET CAMERA
2.0MP Starlight Network Camera
KEYFEATURES
- Resolution 1920x1080@25fps
- 18x IR-LED, Up to 25 Meters
- Low illumination camera
- ONVIF
- Embedded flussonic agent
Video
| Image Sensor | 1/ 2.9” CMOS |
| Max Resolution | 1920 x 1080 |
| Effective Pixels | 2.0MP |
| Compression Standard | H.265/H.264 |
| Maximum Frame Rate | 1080p@25fps |
| BitRate | 128Kbps～8Mbps |
| Illumination | 0Lux (IR ON) |
Lens
| Lens | 3.6mm |
| Viewing Angle | 3.6 mm: 96° |
| IR-LEDs | 14µ x12 LEDs |
| IR-Distance | Up to 25 Meters |
Function
| Motion Detection | Support |
| Email Alert | Support |
| Day & Night | Support |
| DHCP | Support |
| Privacy Mask | Support up to 4 areas |
| Exposure Control | Support |
| Image Adjustmen | Support |
| Auto. White Balance | Support |
| Image Rotation | Support (Mirror/Flip) |
Network
| Ethernet | 10M/100M Ethernet, RJ45 Port |
| Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DHCP, DNS |
| Stream | 2xStreams |
| LAN | Support |
| User | Up to 13 Users |
| Browser | IE8+, Chrome18+ ~42 |
| SmartPhone | iOS/Android |
General
| Dimensions (WHD) | Φ70*165.1mm |
| Weights | 230g |
| Material | Plastic |
| Working Temperature | -20°C～60°C |
| Humidity | RH 10%～90% |
| Power Supply | DC12V/1A, PoE |
| Consumption | Day ≦2W Night ≦ 6W |
| Waterproof | IP66 |
DOME CAMERA
2.0MP Starlight Dome Camera
KEYFEATURES
- Resolution 1920x1080@25fps
- 18x IR-LED, Up to 25 Meters
- Low illumination camera
- ONVIF
- Embedded Flussonic Agent
Video
| Image Sensor | 1/ 2.9” CMOS |
| Max Resolution | 1920 x 1080 |
| Effective Pixels | 2.0MP |
| Compression Standard | H.265/H.264 |
| Maximum Frame Rate | 1080p@25fps |
| BitRate | 128Kbps～8Mbps |
| Illumination | 0Lux (IR ON) |
Lens
| Lens | 3.6mm |
| Viewing Angle | 3.6 mm: 96° |
| IR-LEDs | 14µ x12 LEDs |
| IR-Distance | Up to 25 Meters |
Function
| Motion Detection | Support |
| Email Alert | Support |
| Day & Night | Support |
| DHCP | Support |
| Privacy Mask | Support up to 8 areas |
| Exposure Control | Support |
| Image Adjustmen | Support |
| Auto. White Balance | Support |
| Image Rotation | Support (Mirror/Flip) |
Network
| Ethernet | 10M/100M Ethernet, RJ45 Port |
| Protocols | HTTP, TCP/IP, UDP, ICMP, RTSP, RTP, RTCP, SMTP, DH CP, DNS |
| Stream | 2xStreams |
| LAN | Support |
| User | Up to 13 Users |
| Browser | IE8+, Chrome18+ ~42 |
| SmartPhone | iOS/Android |
General
| Dimensions (WHD) | Φ95x82mm |
| Weights | 190g |
| Material | Plastic |
| Working Temperature | -20°C～60°C |
| Humidity | RH 10%～90% |
| Power Supply | DC12V/1A, PoE |
| Consumption | Day ≦2W Night ≦ 6W |
| Waterproof | NO |
WI-FI CAMERA
2.0MP Wi-Fi Camera
KEYFEATURES
- Resolution 1920×1080
- Supports smart phone remote viewing
- Supports two-way talk
- Wi-Fi IEEE802.11b/g/n
- PAN and TILT
- Support 128GB SD Card
- With Customized Voice function
- Flussonic IRIS
Video
| Image Sensor | 1/2.9” Progressive Scan CMOS |
| Max Resolution | Up to 1920x1080 |
| Effective Pixels | 2.0 MP |
| Compression Standard | H.265-Pro/H.264 |
| Framerate (fps) | Up to 20fps |
| BitRate | 40Kbps～6Mbps |
| Illumination | 5Lux (IR ON |
Lens
| Interface Type | M12 |
| Lens | Fixed 4mm，F2.0 |
| Viewing Angle | H:88°, V: 46°, D: 102° |
| Focusing System | Fixed |
Function
| Exposure Mode | Auto |
| Automatic Gain Control | Auto |
| White Balance | Auto |
| Motion Detection | Support |
| Day-Night Vision | IR-CUT, Supports color/black switch |
| Remote Control | System Management, Stream Management, Alarm Management, Network Management |
| Detection Alarm | E-mail Alert, Client-end Alarm, Smart phone Message Alarm |
| Two-way Talk | Support |
| Storage | Up to 128GB |
| Pan/Tilt | Pan: 345° Tilt: 117° |
Interface
| Audio Input | 1 Channel Internal MIC |
| Audio Output | 1 Channel Internal Speaker |
| Ethernet Port | Yes |
| TF Card | Support |
| Reset | Support |
Network
| Ethernet | 10M/100M Ethernet, RJ45 Port |
| Wi-Fi | Wi-Fi (IEEE802.11b/g/n) |
| Stream | Dual stream |
| Protocols | TCP/IP, ICMP, UDP, SMTP, DHCP |
General
| IR Light | 8 pcs 940nm IR LED Lights |
| IR Distance | 10m |
| Working Temp. | -10°C～55°C |
| Humidity | RH 10%～90% |
| Power Supply | DC5V/1.5A |
| Consumption | Day<3W, Night<6W |
| Color/Material | White/ABS+PC |
| Dimension (WxHxD) | 65 x 60 x 108.5(mm) |
| Installation | Wall, Ceiling, Desktop |
